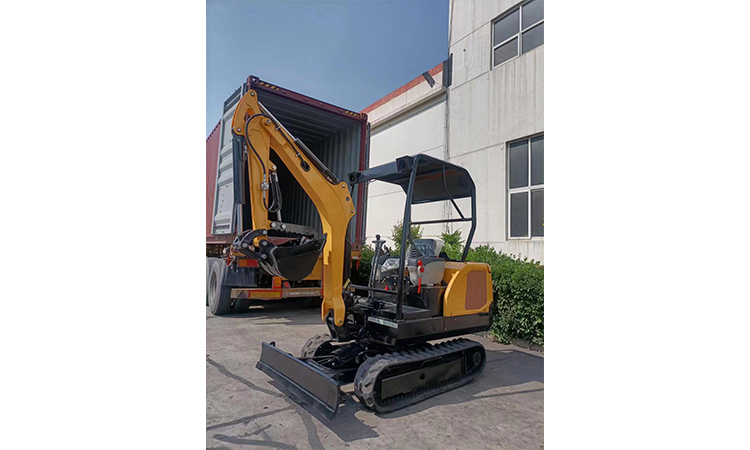

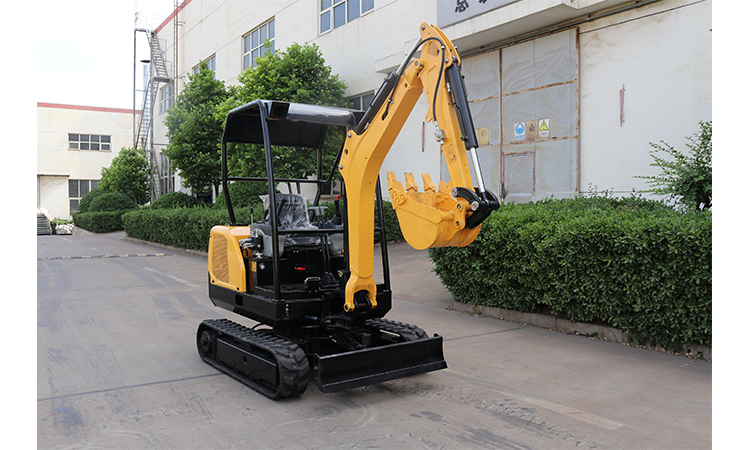

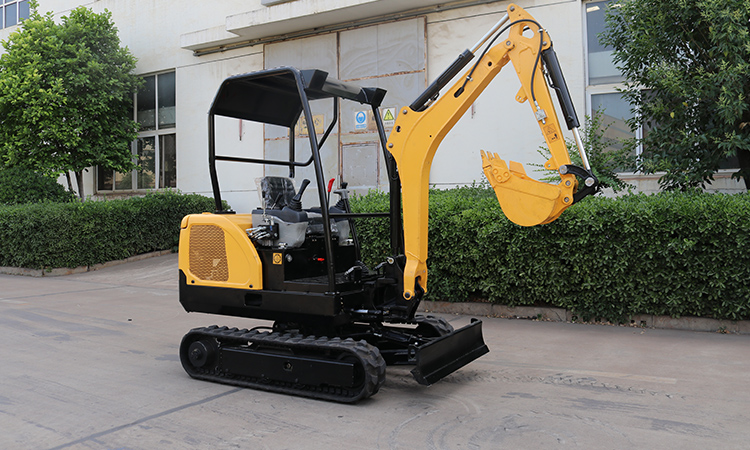

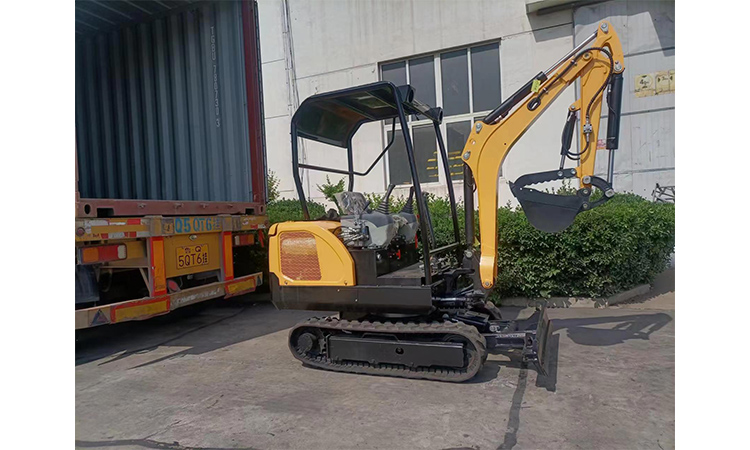

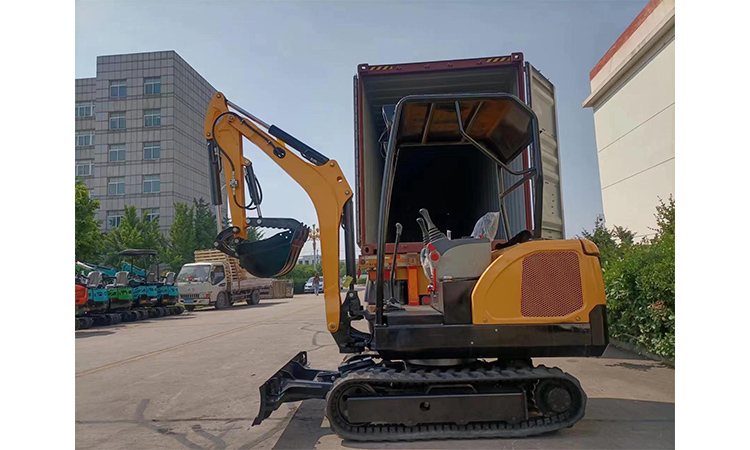

E.P Brand 2.5 ton small excavation MY25 excavator mini
E.P Brand 2.5 ton small excavation MY25 excavator mini
/ Brand:E.P / / Bucket capacity:0.045m³ / / Power:25HP / / Overall weight:2480kg /
| Specifications Of Performance | |||
| Operation Weight | 2480kg | Power | 25HP |
|---|---|---|---|
| Bucket Capacity | 0.045m³ | Engine Model | Laidong 385 |
| Operation Mode | Backhoe | Digging Force | 13.5KN |
| Max Grade Ability | 30° | Pump Type | Piston Pump |
| Fuel Tank Capacity | 23L | Swing Motor | Eaton |
| Working Motor | Dong xian | Piston Pump | Taifeng |
| Main Dimension | |||
| Overall Dimensions | 2500*1400*2200mm | Track Gauge | 1280mm |
| Track Length(on ground) | 1250mm | Track Width | 230mm |
| Chassis Width | 1090-1400mm | Track Height | 380mm |
| Swing Boom | ±60° | Transportation Length | 3830mm |
| Operating Range | |||
| Max Digging Depth | 2200mm | Min Swing Radius | 1680mm |
| Max Digging Radius | 3280mm | Max Digging Height | 3850mm |
| Max Dumping Height | 2830mm | Max Vertical Digging Depth | 1890mm |
| Platform Ground Clearance | 458mm | ||
Hydraulic Valve
Piston Pump
Motor
dynamical system
KOOP Engine
The MY25 small excavator is equipped with a 13.7kw koop engine, which has strong power and can ensure the reliability of the machine in harsh working conditions.
Kubota Engine
Equipped with a Kubota engine, with a power of up to 15.4kW, ensuring strong power output and reliability and durability.
Changchai Engine
Strong power, fuel economy, high reliability, environmental protection, energy-saving, and wide adaptability, it is an important component of the MY25 small excavator.
hydraulic system
