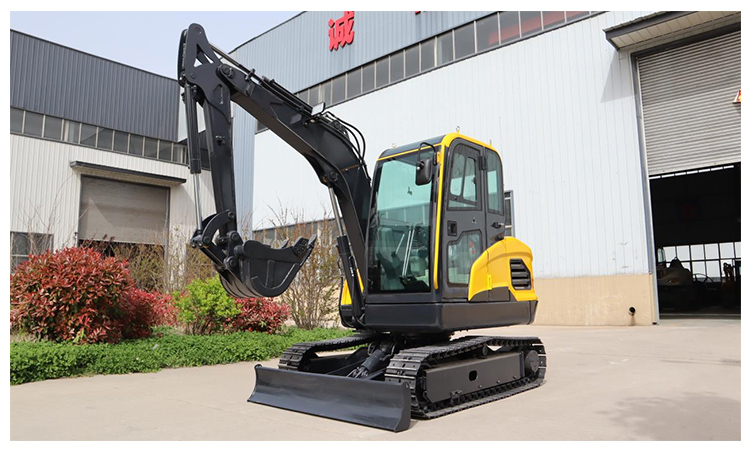

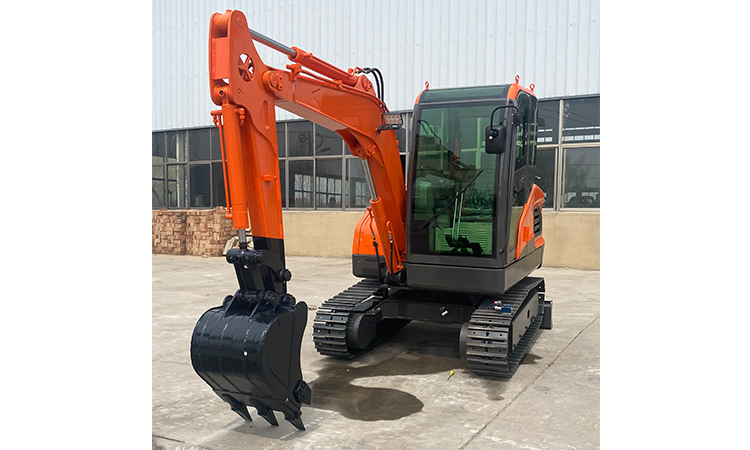

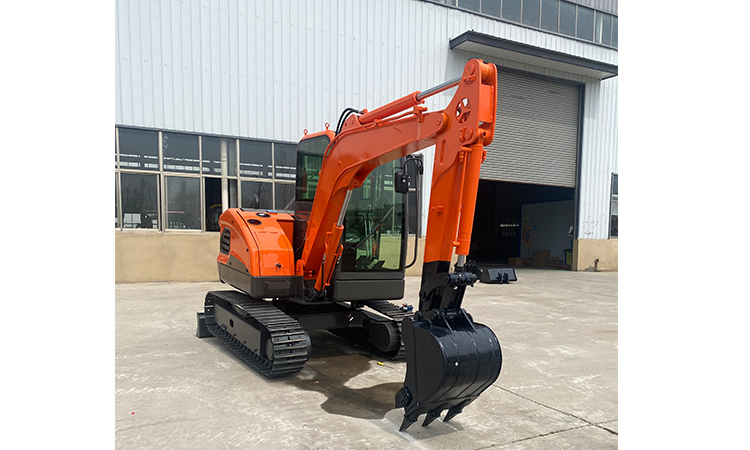

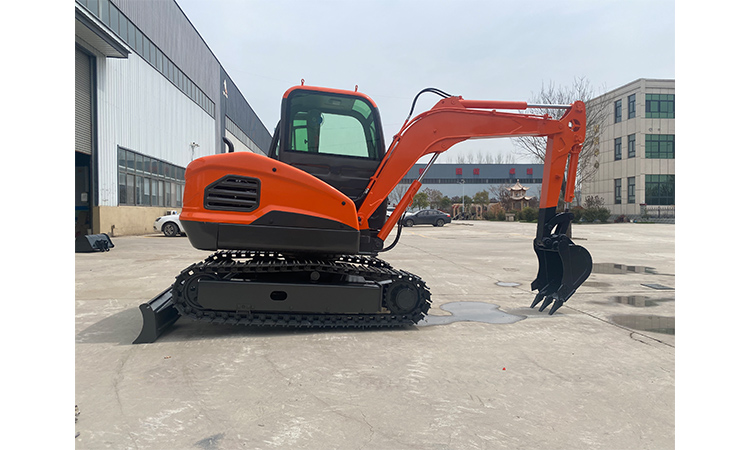

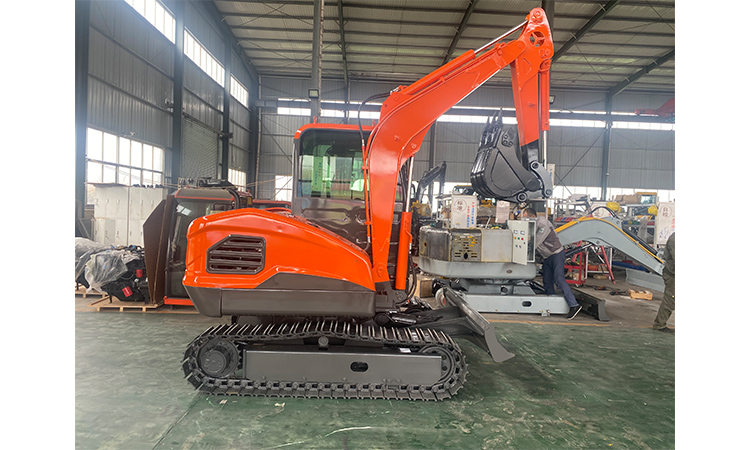

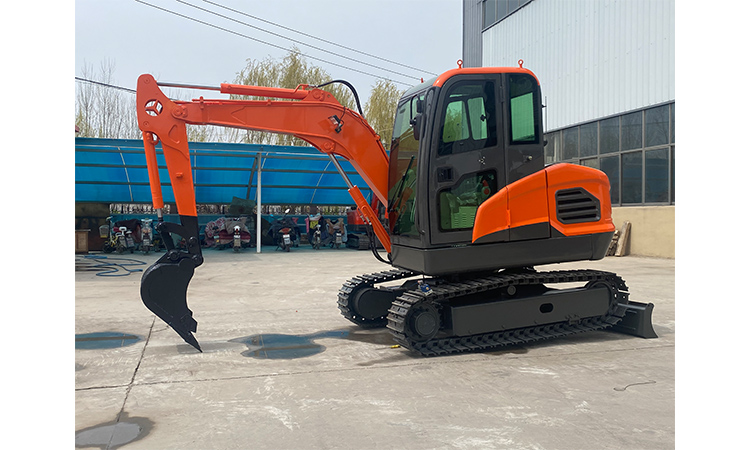

E.P Brand 4.0 Ton small excavation MY40 excavator mini
E.P Brand 4.0 Ton small excavation MY40 excavator mini
/ Brand:E.P / / Bucket capacity:0.16m³ / / Overall weight:3700kg / / Power:34HP/19.6kw /
| Specifications Of Performance | |||
| Operation Weight | 3700kg | Power | 34HP/19.6kw |
|---|---|---|---|
| Bucket Capacity | 0.16m³ | Engine Model | ChangChai/YanMar388 |
| Cooling Method | Water-cooling | Chassis Width | 1530/1600mm |
| Climbing Ability | 35° | Max Digging Force | 5560N |
| Rotation Speed | 8-10R/Min | Oil Tank Volume | 22L |
| Main Dimension | |||
| Travel Distance | 4400mm | Operation Weight | 3700kg |
| Total Height | 2250mm | Track Gauge | 1703mm |
| Boom Length | 2400mm | Bucket Stick Length | 1250mm |
| Operating Range | |||
| Max Digging Depth | 2545mm | Max Digging Height | 4450mm |
| Max Digging Radius | 4630mm | Max Digging Height | 3610mm |
| Max Dumping Height | 3050mm | ||
| Max Lifting Height Of Dozer Blade | 359mm | Max Digging Depth Of Dozer Blade | 268mm |
Due to the continuous updating and progress of technology, any differences in technical parameters and configurations between the actual product and the actual product shall be subject to the actual product delivered; Additionally, the machine in the picture may include additional equipment.
